Amerisun Solar Off Grid Solar Kits

Iron Core off grid power systems were designed with performance, reliability and cost effectiveness in mind. With over 25 years of experience designing, selling and repairing off grid solar systems, we know full well which products work and which product don't. We use this knowlege and experience when designing our off grid power systems. For instance, unlike the lightweight, high-frequency systems that most dealers are now selling, that can struggle with surges or heavy loads, Off Grid Solar uses only advanced low-frequency, transformer-based inverter technology, the same rugged design trusted in industrial and military applications.

Over the past two and a half decades, we've learned that this type of low cost, high frequency inverter technology offers not on;y a far poorer surge capacity, and a much shorter life expectancy, but because they lack any galavanic isolation whatsover, they can damage your home's appliances when their MOSFETs/IGBTs fail.

Whether you're living off-grid, preparing for emergencies, or just want peace of mind during power outages — an Iron Core home backup power system has your back. It’s quiet. Clean. Smart. And ready to keep your home running when the grid goes down. Iron Core. Power That Won’t Quit.

Reliable performance in extreme conditions
Superior surge handling for starting motors and appliances
Pure sine wave output that’s safe for all your electronics

Description
Additional Info

Description

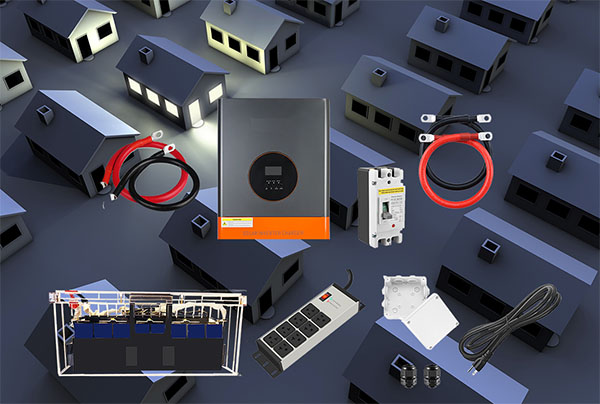

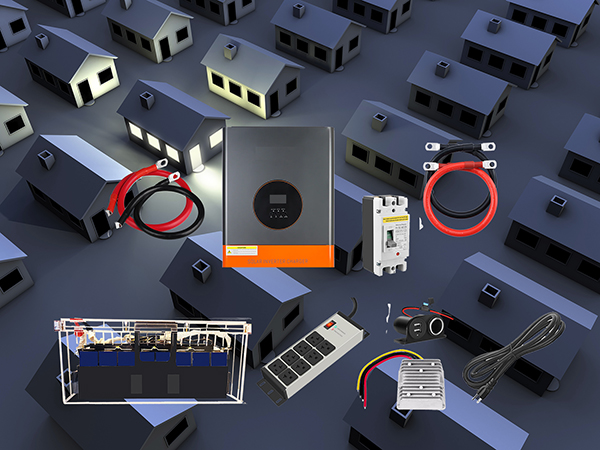

This Iron Core 3kW continuous (9,000 Watt Peak) emergency power system can be used during power outages to power 120 Volt appliances or with the addition of solar panels, it can be used as a full time off grid power system for a tiny home or cabin. This system comes complete with a heavy duty, 120 Amp DC circuit breaker, a 24 Volt 2.30kWh marine grade Lithium Iron Phosphate battery, DC cabling between the inverter and the DC circuit breaker, a 8 outlet heavy duty 20 Amp surge protector, A junction box, and an AC power cord for connection to the inverter's onboard 38 Amp AC charging system.

The 3kW low frequency, transformer based inverter that is included in this system has a 9,000 Watt surge capacity rating, an integrated 20-150 Volt, 60 Amp MPPT PV chargering system, an RS232 communication interface and a BMS/RS485 communication interface, dry contact ports, an AC transfer switch with ≤10ms transfer time.

Additional Info

These fourth generation, heavy duty off grid solar kits use the latest PV and inverter technology that have a long history of providing providing many years of trouble free operation.
